HECKLER & KOCH HK416

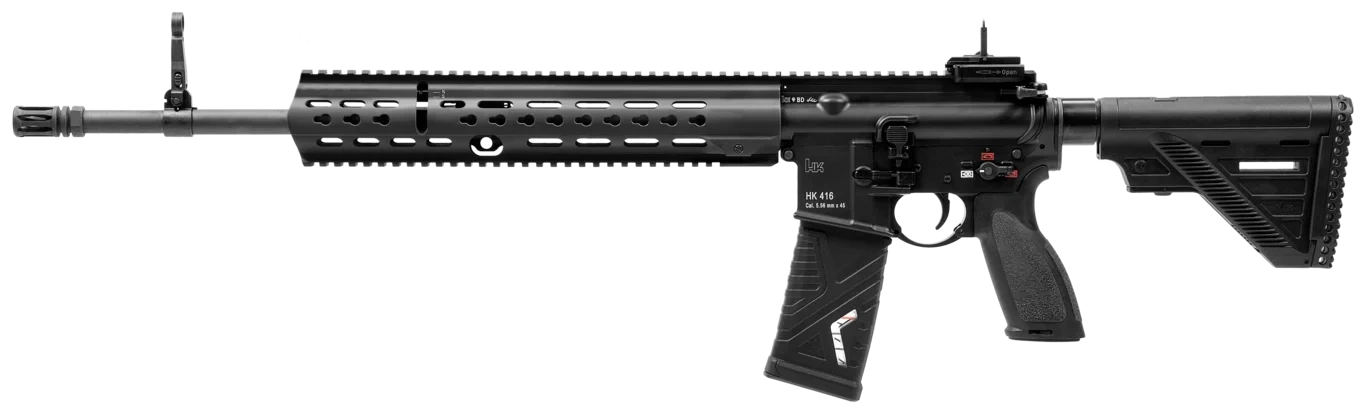

The image above shows a 14.5" HK416 A3 with the iconic HK diopter style rear and folding front sight

DEVELOPMENT

The United States Army's Delta Force, at the request of R&D NCO Larry Vickers, collaborated with the German arms maker Heckler & Koch to develop the new carbine in the early 1990s. During development, Heckler & Koch capitalised on experience gained developing the Bundeswehr's Heckler & Koch G36 assault rifle, the U.S. Army's XM8 rifle project (cancelled in 2005) and the modernisation of the British Armed Forces SA80 small arms family. The project was originally called the Heckler & Koch M4, but this was changed in response to a trademark infringement suit filed by Colt Defense.

Delta Force replaced its M4s with the HK416 in 2004, after tests revealed that the piston operating system significantly reduces malfunctions while increasing the life of parts. The HK416 has been tested by the United States military and is in use with some law enforcement agencies. It was adopted as the standard rifle of the Norwegian Armed Forces in 2008, the French Armed Forces in 2017 and is used by many special operations units worldwide.

A modified variant underwent testing by the United States Marine Corps as the M27 Infantry Automatic Rifle. After the Marine Corps Operational Test & Evaluation Activity supervised a round of testing at MCAGCC Twentynine Palms, Fort McCoy, and Camp Shelby (for dust, cold-weather, and hot-weather conditions, respectively). As of March 2012, fielding of 452 IARs had been completed of 4,748 ordered. Five infantry battalions: 1st Light Armored Reconnaissance Battalion and 2nd Battalion, 4th Marines, out of Camp Pendleton, Calif.; First Battalion, 3rd Marines, out of Marine Corps Base Hawaii; 1st Battalion, 9th Marines, out of Camp Lejeune, N.C.; and 1st Battalion, 25th Marines, out of Fort Devens, Mass. have deployed the weapon. In December 2017, the Marine Corps revealed a decision to equip every Marine in an infantry squad with the M27 IAR.

The M27 Infantry Automatic Rifle (IAR) is a lightweight magazine-fed 5.56mm select-fire weapon based on the HK416 rifle designed and manufactured by the German company Heckler & Koch. It is used by the United States Marine Corps and is intended to enhance an automatic rifleman's maneuverability. The U.S. Marine Corps initially planned to purchase 6,500 M27s to replace a portion of the M249 light machine guns employed by automatic riflemen within Infantry and Light Armored Reconnaissance Battalions. Approximately 8,000–10,000 M249s will remain in service  with the Marine Corps to be used at the discretion of company  commanders.


DESIGN


The HK416 uses a HK-proprietary short-stroke gas piston system that derives from the HK G36, forgoing the concentric to bore gas piston system standard in AR-15 rifles. The HK G36 gas system was in turn partially derived from the AR-18 assault rifle designed in 1963. The HK system uses a short-stroke piston driving an operating rod to force the bolt carrier to the rear. This design prevents combustion gases from entering the weapon's interior—a shortcoming with direct impingement systems. The reduction in heat and fouling of the bolt carrier group increases the reliability of the weapon and extends the interval between stoppages. During factory tests the HK416 fired 10,000 rounds in full-auto without malfunctioning. The HK416’s piston system was originally self-regulating in theory, but in the default position tends to give increased recoil over an adjustable gas system. A user adjustable gas regulator was added in later variants.  The HK416 is equipped with a proprietary accessory rail forearm with MIL-STD-1913 rails on all four sides. This lets most current accessories for M4/M16-type weapons fit the HK416. The HK416 rail forearm can be installed and removed without tools by using the bolt locking lug as the screwdriver. The rail forearm is "free-floating" and does not contact the barrel, improving accuracy.  The HK416 has an adjustable multi-position telescopic butt stock, offering six different lengths of pull. The shoulder pad can be either convex or concave and the stock features a storage space for maintenance accessories, spare electrical batteries or other small kit items. It can also be switched out for other variations like Magpul stocks.  The trigger pull is 34 N (7.6 lbf). The empty weight of a HK416 box magazine is 250 g (8.8 oz).  The HK416's barrel is cold hammer-forged with a 20,000-round service life and features a 6 grooves 178 mm (7 in) right hand twist. The cold hammer-forging process provides a stronger barrel for greater safety in case of an obstructed bore or for extended firing sessions. Modifications for an over-the-beach (OTB) capability such as drainage holes in the bolt carrier and buffer system are available to let the HK416 fire safely as quickly as possible after being submerged in liquids like water. To reduce the risk of slam-firing, the HK416 features a proprietary firing pin safety in the bolt. This firing pin safety limits the HK416 upper to working with standard AR-15 type full height hammers in the fire control group of the lower.


ADOPTION


In July 2007, the U.S. Army announced a limited competition between the M4 carbine, FN SCAR, HK416, and the previously-shelved HK XM8. Ten examples of each of the four competitors were involved. Each weapon fired 60,000 rounds in an extreme dust environment. The shoot-off was for assessing future needs, not to select a replacement for the M4. The XM8 scored the best, with only 127 stoppages in 60,000 total rounds, the FN SCAR Light had 226 stoppages, while the HK416 had 233 stoppages. The M4 carbine scored "significantly worse" than the rest of the field with 882 stoppages. However, magazine failures caused 239 of the M4's 882 failures. Army officials said, in December 2007, that the new magazines could be combat-ready by spring of 2008 if testing went well. In December 2009, a modified version of the HK416 was selected for the final testing in the Infantry Automatic Rifle program, designed to partially replace the M249 light machine gun at the squad level for the United States Marine Corps.  It beat the three other finalists by FN Herstal and Colt Defense. In July 2010, the HK416 IAR was designated as the M27, and 450 were procured for additional testing. The Turkish company Makina ve Kimya Endustrisi Kurumu ("Mechanical and Chemical Industry Corporation") has considered manufacturing a copy of the HK416 as the MKEK Mehmetçik-1 for the Turkish Armed Forces. Instead, the new MPT-76 rifle has been developed by KALEKALIP with MKEK as the producer, with the Mehmetçik-1 dropped from adoption into the Turkish military. The French armed forces conducted a rifle evaluation and trial to replace the FAMAS, and selected the HK416F as its primary firearm in 2016. Of the 93,080 rifles, 54,575 will be a "short" version with a 280 mm (11 in) barrel weighing 3.7 kg (8.2 lb) without the ability to use a grenade launcher, and 38,505 will be a "standard" version with a 368 mm (14.5 in) barrel weighing 4 kg (8.8 lb), of which 14,915 will take FÉLIN attachments; standard rifles will be supplied with 10,767 HK269F grenade launchers. 5,000 units are supposed to be delivered in 2017, half of the order delivered by 2022, and the order fulfilled by 2028. The first batch of 400 rifles was delivered on 3 May 2017. The HK416 was one of the weapons displayed to U.S. Army officials during an invitation-only Industry Day on 13 November 2008. The goal of the Industry Day was to review current carbine technology prior to writing formal requirements for a future replacement for the M4 carbine. The HK416 was then an entry in the Individual Carbine competition to replace the M4. The weapon submitted was known as the HK416 A5. The Individual Carbine competition was cancelled before a winning weapon was chosen.

HK416 VARIANTS

HK416 A3

HK416 A3

HK416 A3

Learn more

HK415 A5

HK416 A3

HK416 A3

Learn more

HK416 A7

HK416 A3

HK416 A7

Learn more

Heckler & Koch HK416

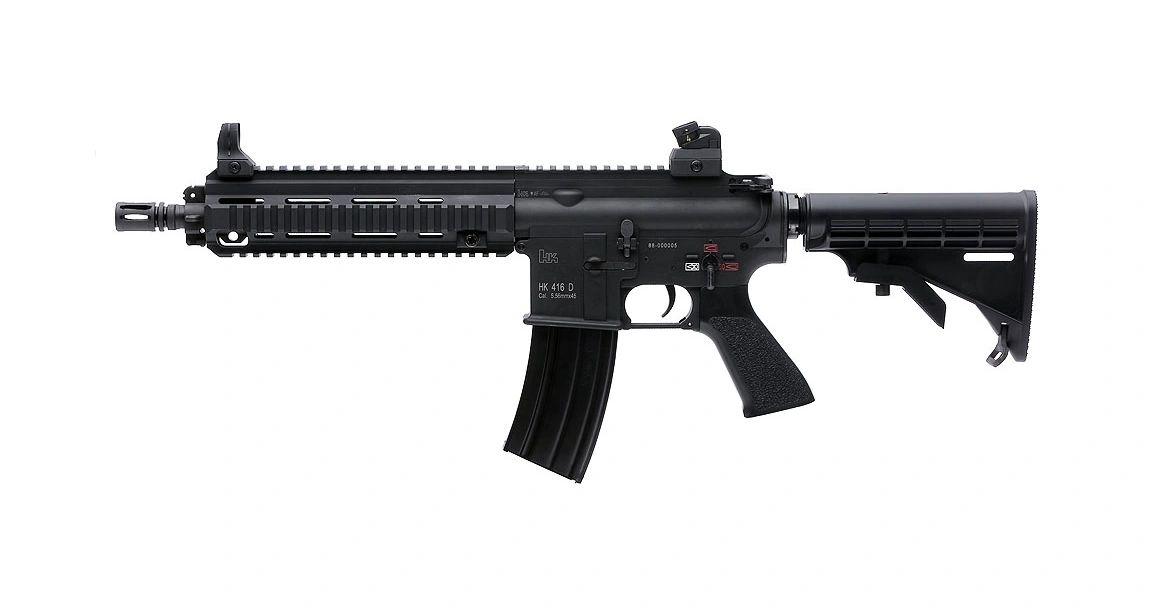

HK 416 10.4"

Here you see an example of the classic 10.4" HK416. Noteworthy features include the folding front sight mounted on top of the gas block, the squared off style magwell and the iconic drum diopter style rear sight.

HK416 A3 right side

On the right side of this weapon you'll notice a fire control lever for left handed shooters and a specialized bolt to retain the quadrail style handguard that can be removed using a lug on the bolt head. This rather clever feature allows the user access to the gas system without having to carry a separate tool to remove the handguard.

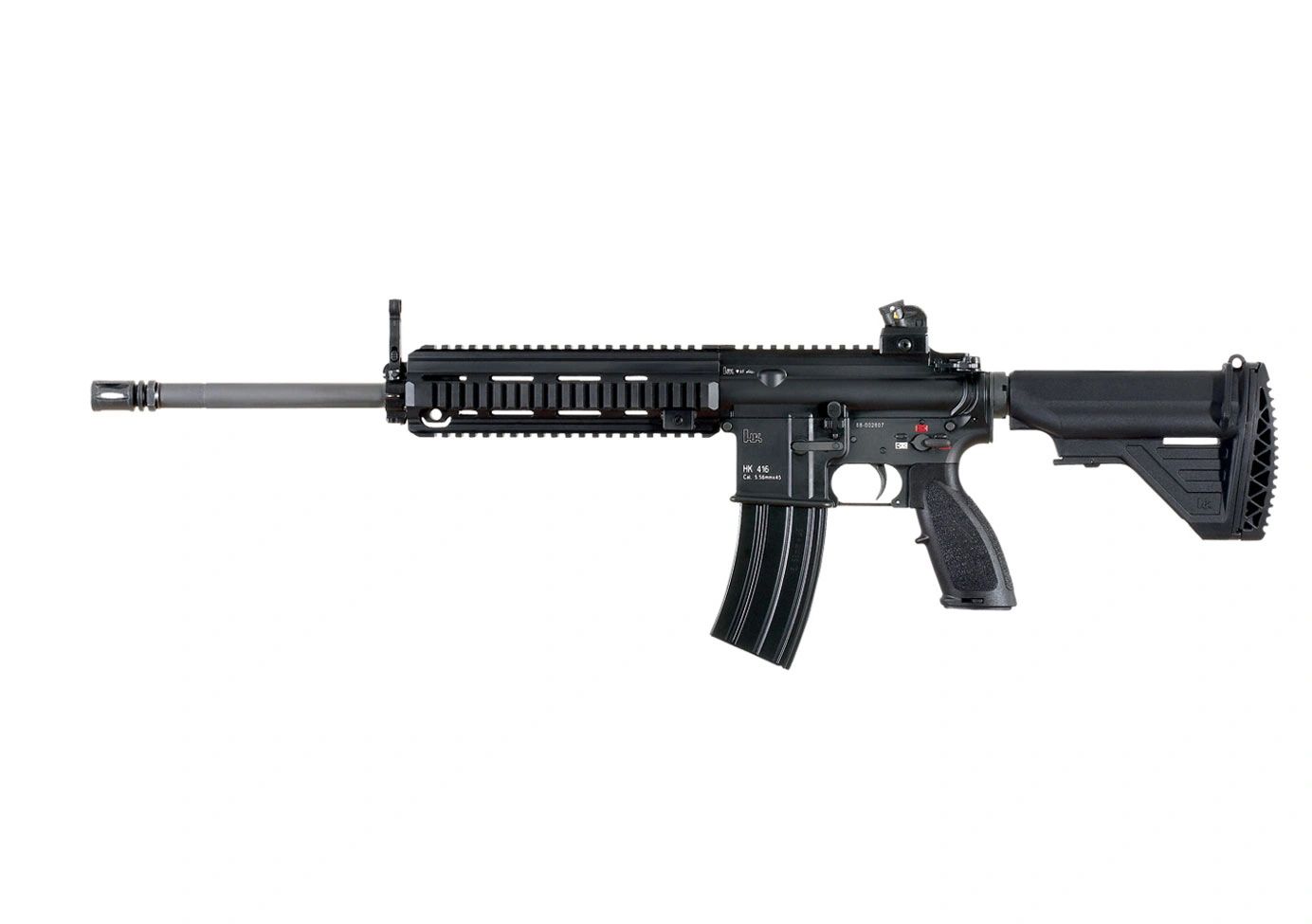

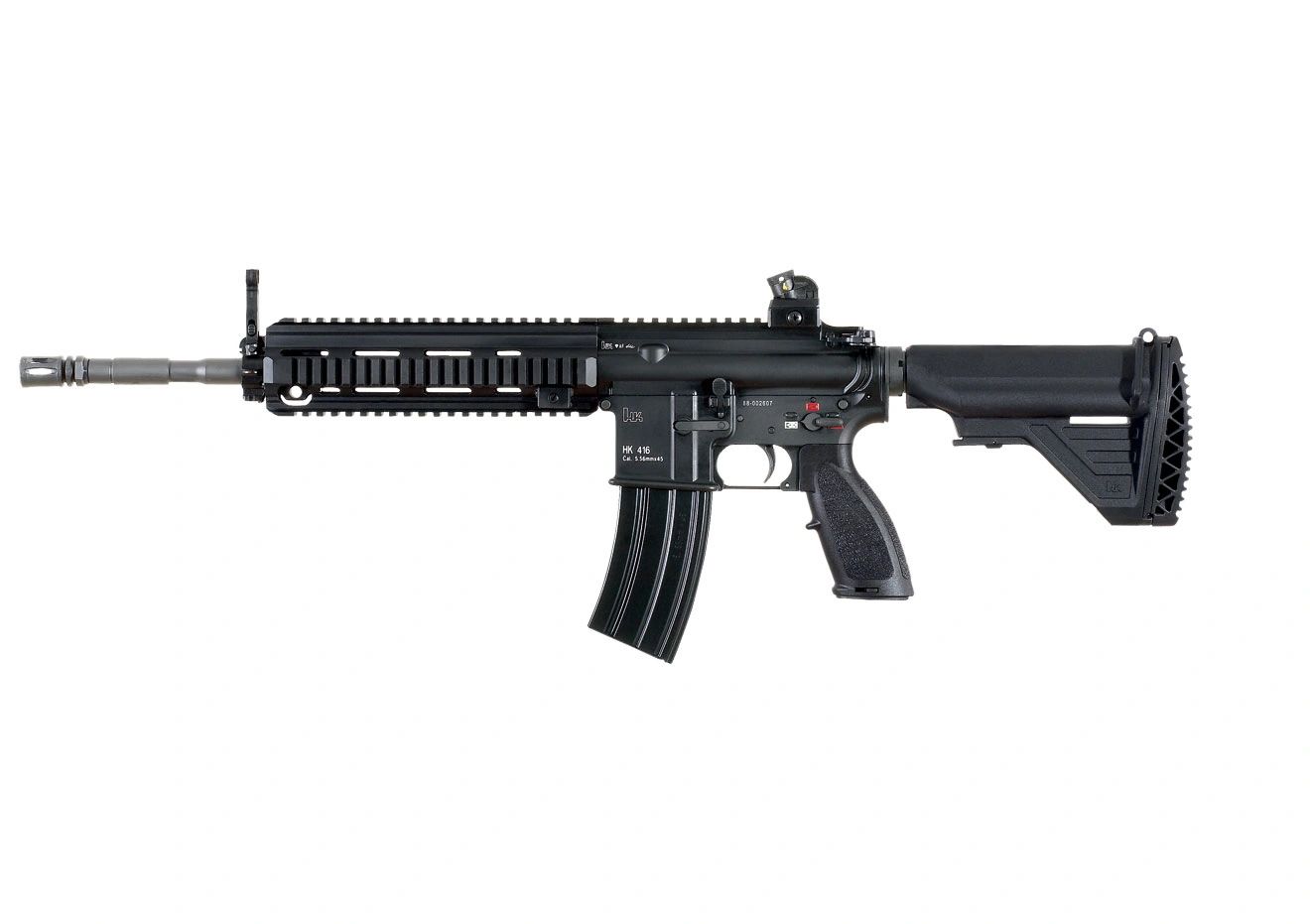

HK 416 14.5"

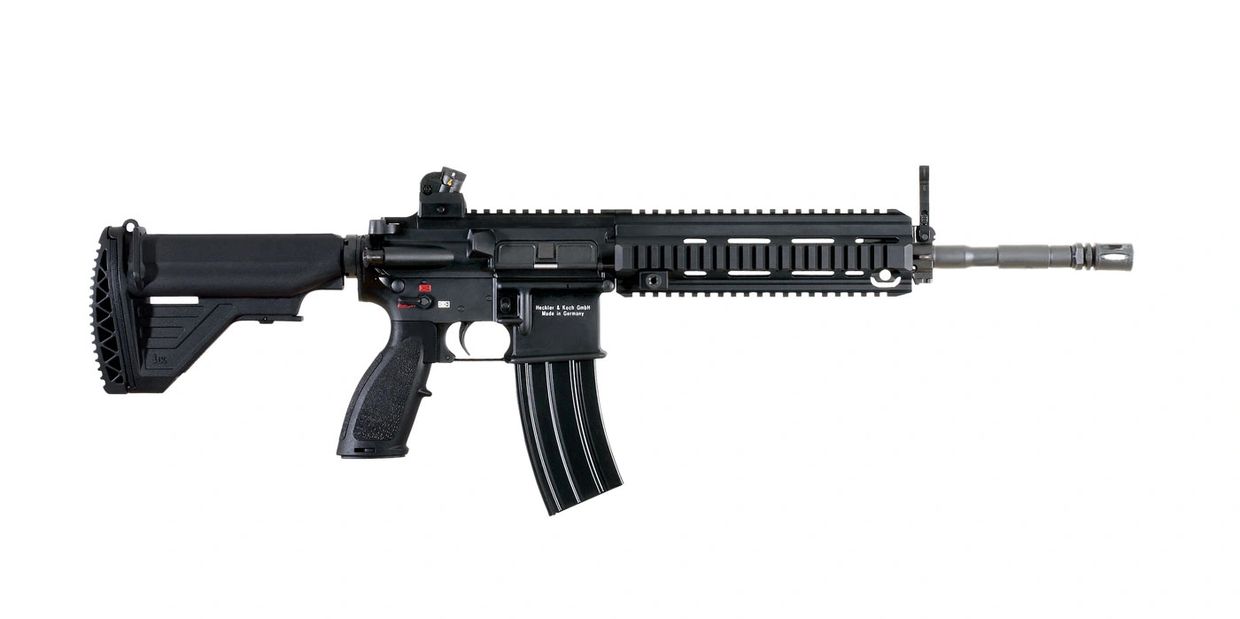

On the 14.5" version  you can see that the gas system is the same length as the 10.5" HK416, only the length of the barrel itself has changed.



The added barrel length of the 14.5" HK416 delivers a noticeable increase in velocity over the 10.4" extending the effective range of the weapon.



Here we have a 16.5" HK416 with all the standard features and the added benefit of the longer barrel.



On this 16.5" 416 the rear diopter sight has been replaced by a more compact, folding rear sight. The front sight folds forward into the handguard.

    French Special Forces Soldier Equipped With A 14.5" HK416

    1/6

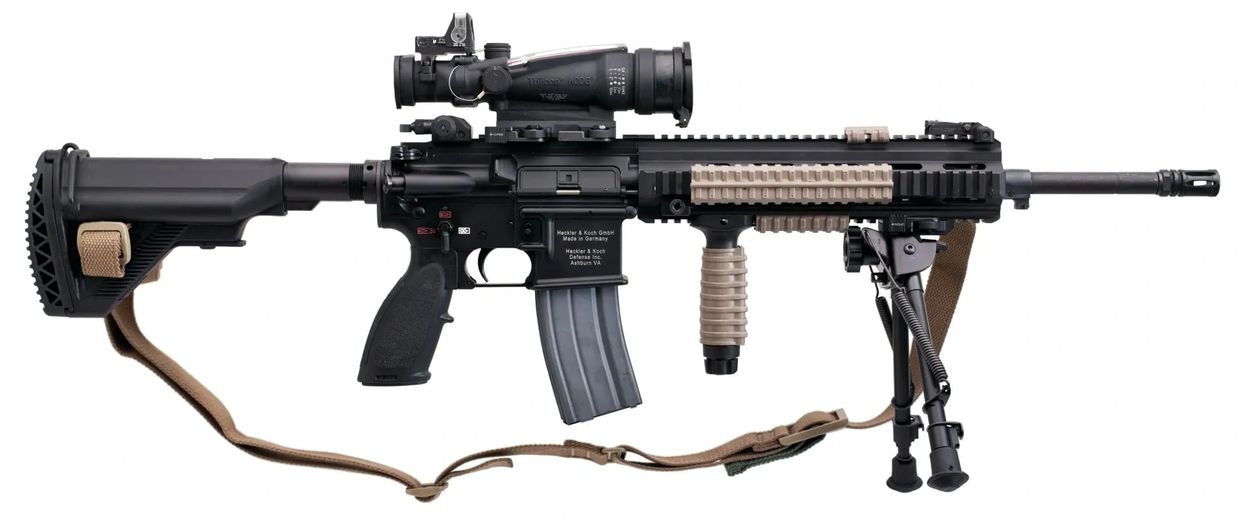

    The Heckler & Koch M27 IAR


    In 2011 the HK416 was competitively selected by the US Marine Corps (USMC) for their Infantry Automatic Rifle (IAR) program and designated the M27. The M27 (HK416) replaced the M249 belt-fed Squad Automatic Weapon (SAW) issued to the Automatic Rifleman within the squad. In 2016 the U.S. Marine Corps authorized the MagPul PMag 30-round magazines NSN 1005-01-615-5169 (black) and NSN 1005-01659-7086 (tan) after 20,000+ round tests with the M27, M4, and M16A4 weapons and various service-related USMC and US Army ammunition.

    In 2017 the service authorized the use of the M27 as the M38 Squad Designated Marksman Rifle (SDMR)/Special Purpose Ri e (SPR) at the infantry squad/platoon level with the use and integration of existing service level accessories which include a designated marksman optic, suppressor, and precision ammunition meeting the requirements of the MK12 SPR. In 2018 the service authorized the use of the M27 (HK416) across the entire Infantry within the infantry squads.



    HK M27 IAR SPECIFICATIONS

    Weight: 7.19 lbs (empty) 9 lbs (loaded with 30-round magazine)


    Length: 36.9 inches (stock extended fully) 33 inches (stock retracted)


    Barrel length : 16.5 inches


    Action : Gas-operated short-stroke piston, rotating bolt


    Rate of fire : Sustained: 36 rpm Cyclic: 700 to 850 rpm   muzzle velocity : 2,550 feet per second


    Effective range : 550 meters (point target 600 meters (area target)


    Caliber : 5.56x45mm NATO


    Magazine :  30-round STANAG magazine

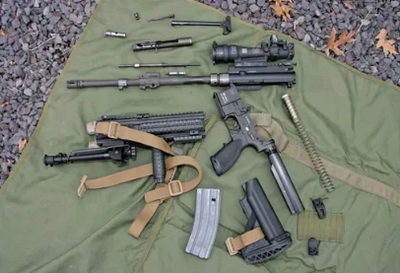

    An HK M27 IAR field stripped

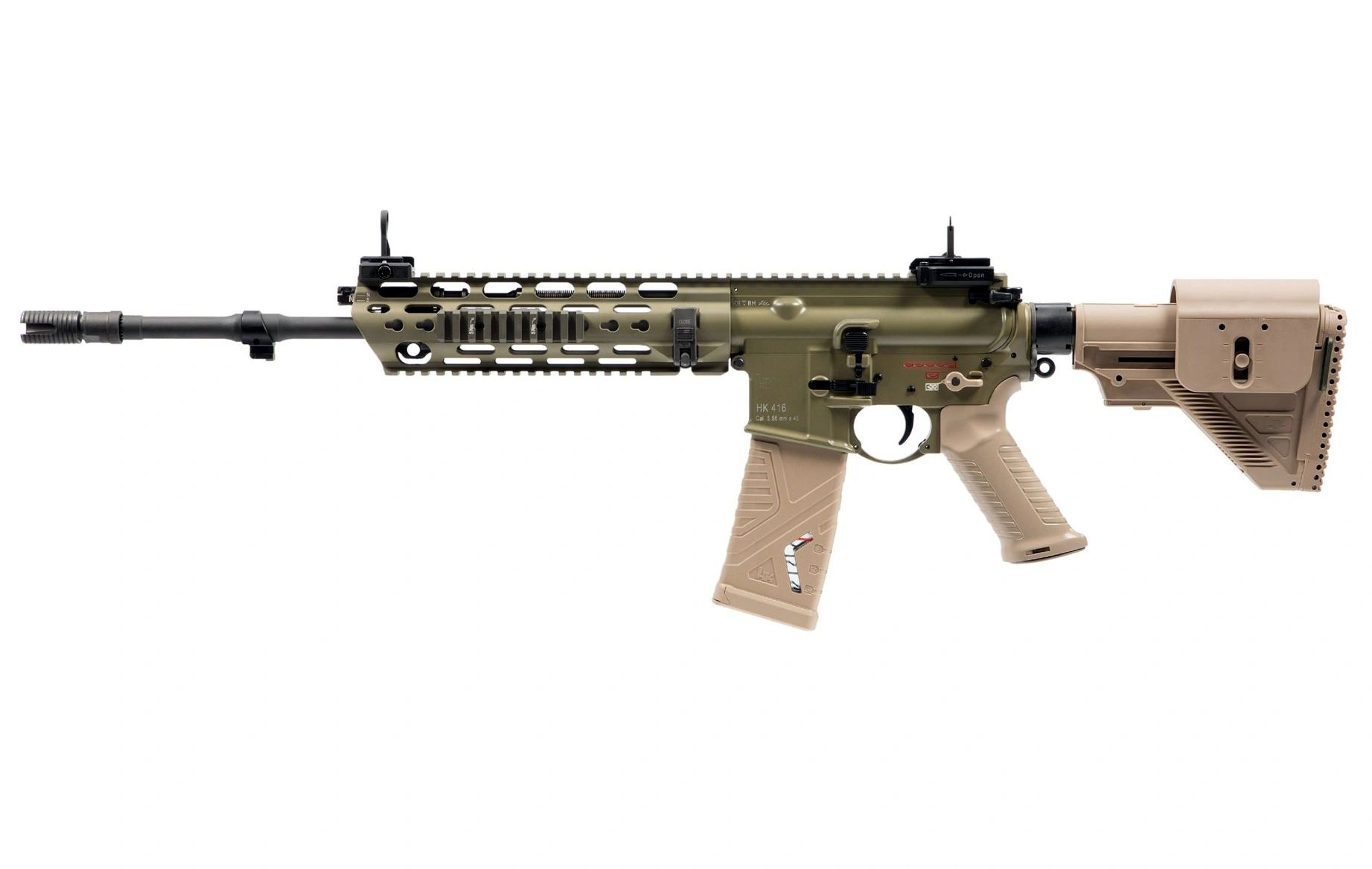

    HK416 A5

    The HK416 A5 is a further development of the HK416 assault rifle in 5.56 x 45 mm NATO calibre. The most striking changes compared to its previous versions as well as to market available AR platforms include an improved and tool-less gas regulator for suppressor use, a redesigned, user-friendly lower receiver, which allows complete ambidextrous operation of the weapon and ensures optimised magazine compatibility, as well as numerous technical improvements to maximize the operator safety, reliability, ammunition compatibility and durability under real operating conditions.


    Variants | Options


    • 11“, 14.5“, 16.5“ and 20“ barrel lengths available
    • Black and green brown colour scheme
    • Compatible with HK 40 mm low velocity GLM/M320 Compatible with HK steel and polymer magazines


    Distinctive features of the variants


    • The 20" Variant has a long handguard with a gas regulator window
    • Handguard with integrated flip up sight on 11"
    • Variant Modular interface for Bayonet and foldable front sight on barrel of the 14.5", 16.5" and 20"  variants

    FEATURES

    • Modified and tool-less gas regulator for suppressor use
    • Safety-/Fire selector lever can be set to safe when the hammer is in the cocked or uncocked position
    • Over the beach (OTB) capability
    • Completely ambidextrous operating controls (bolt catch-, Magazine release-, safety-/fire selector lever and charging handle)
    • "Winter" trigger guard for use with gloves and cold weather clothing
    • Non-stop NATO-Stanag 4694 top rail for use of various mechanical and optical sights (incl. night vision/thermal)
    • Redesigned ergonomic pistol grip with storage compartment for field stripping tool
    • Enlarged Bolt catch lever and protective barrier against accidental discharge
    • "Slim line" Telescopic buttstock
    • Optimised receiver geometry, modified assembly interfaces and improved receiver connections
    • Receiver extension to stabilise and accomplish drop test criteria under real conditions
    • Increased magazine compatibility in accordance with NATO-STANAG-DRAFT 4179 (M4/M16 Magazines)
    • 40 mm Low velocity GLM/M320 interface

    HK416 A5

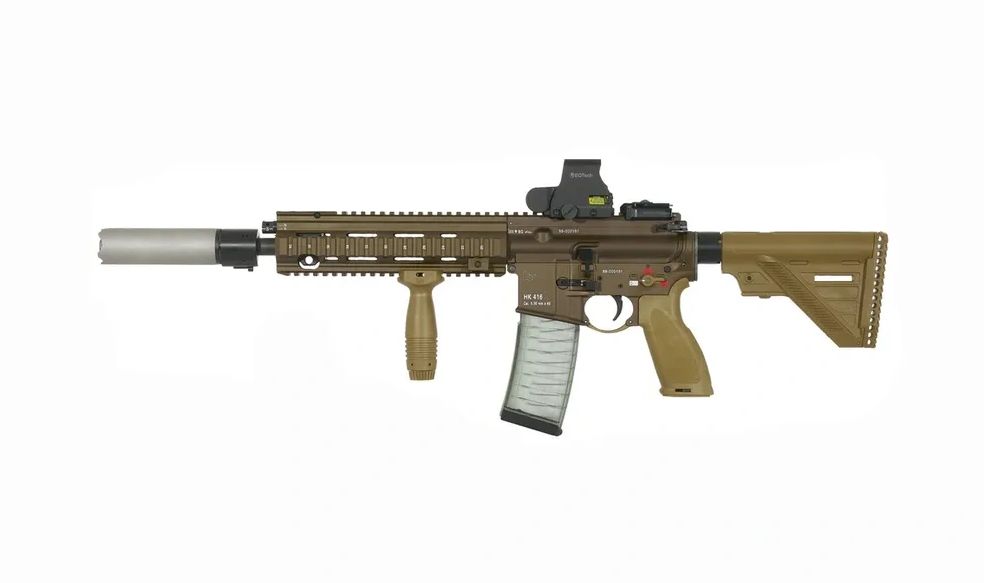

    HK416 A5 equipped with Rotex suppressor and EOTECH holographic sight.


    Barrel Length: 27.94 cm or 11"
    Weight: 3.12 kg or 6.87 lbs
    (without the EOTECH sight, Rotex suppressor, assault grip and magazine.

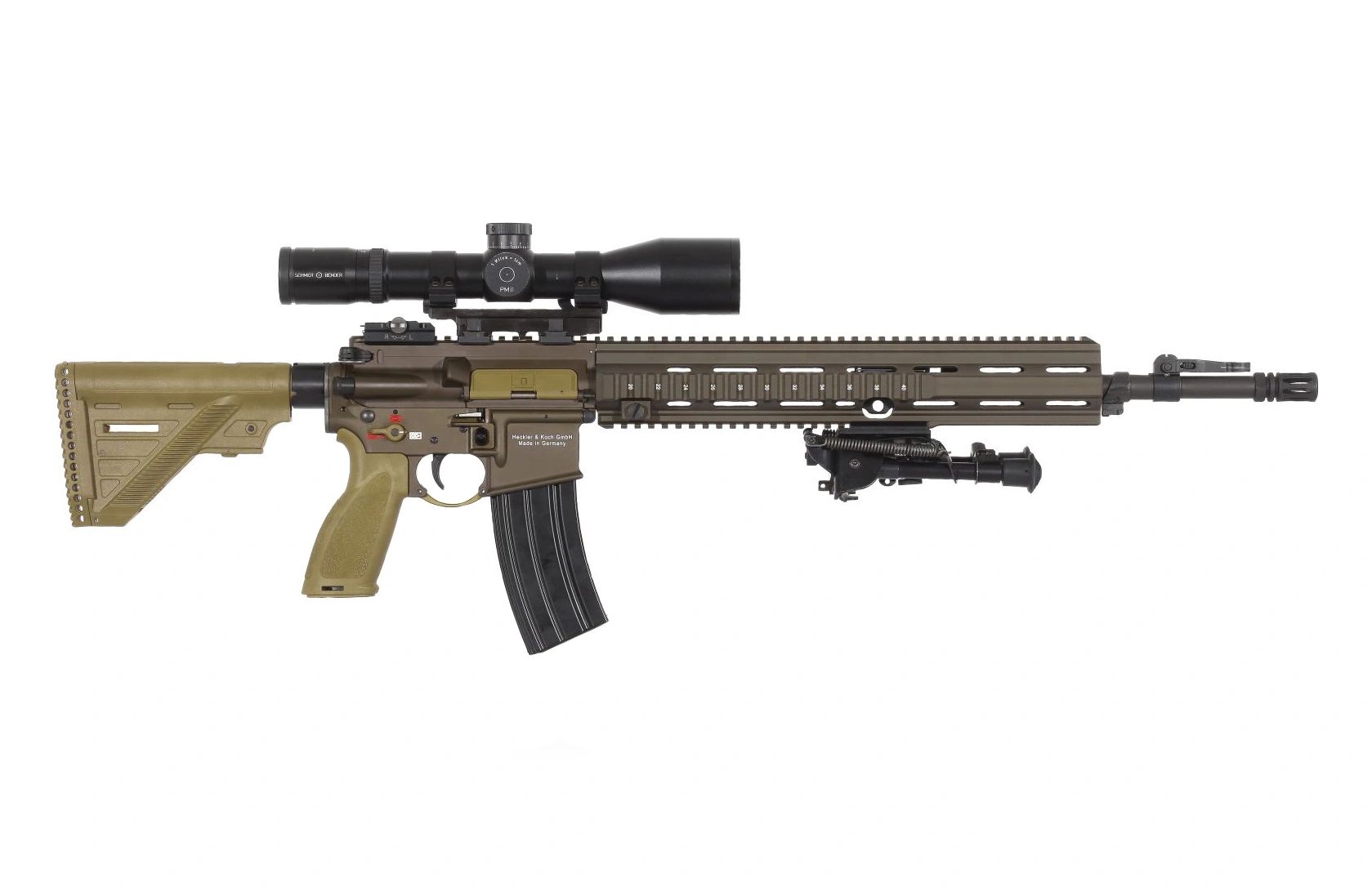

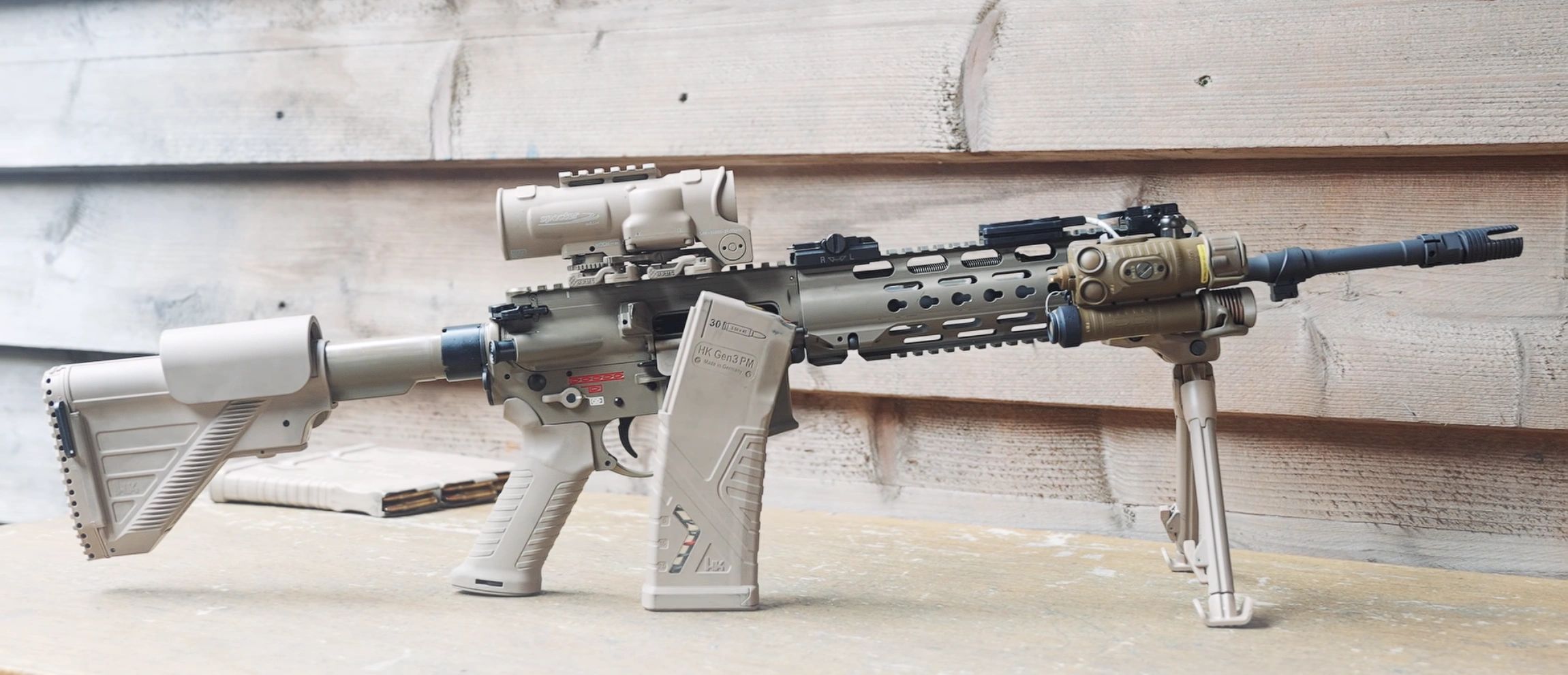

    HK416 A5  outfitted a with a scope and bipod.


    Barrel Length: 50.5 cm or 19.8"

    Weight: 3.85 kg or 8.4 lbs

    (without the scope, scope mount, bipod and magazine.

    Heckler & Koch G38

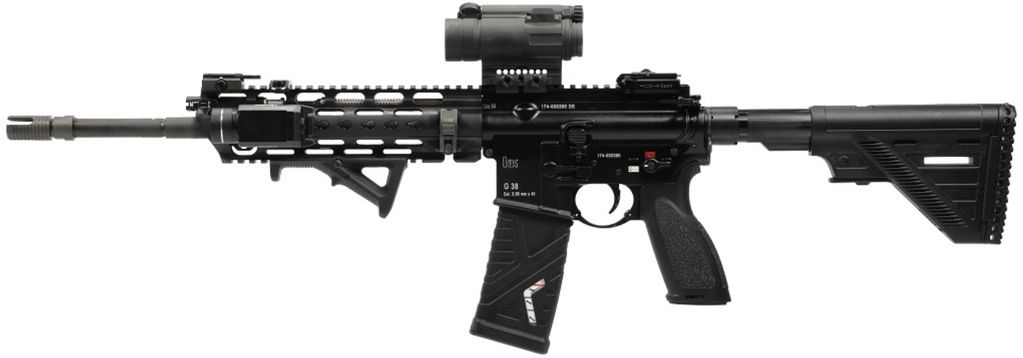

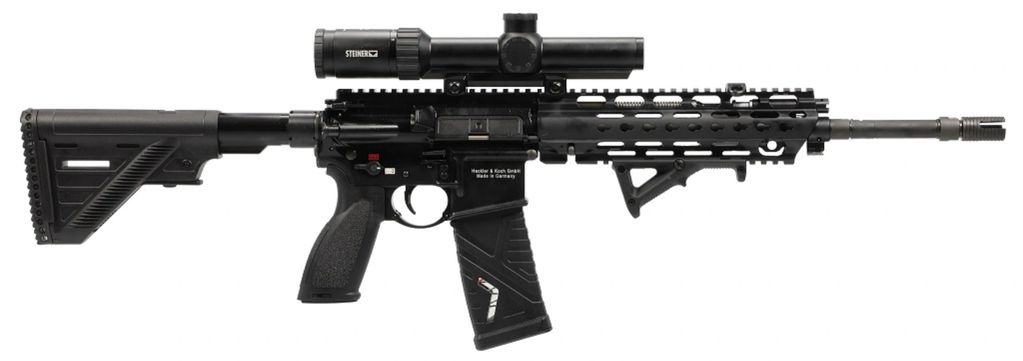

    HK G38

    This HK416 A5 known as the G38, was configured at the request of the Police in Hessen, Germany as a middle distance weapon. Fitted with a Steiner M5Xi scope a super light weight, vented Hkey style handguard, and a rail mounted, double loop sling attachment point normally seen on the French HK416F.

    Hk G38

    This G38 was specially equipt for the Hessian Police with a quick detach handguard.

    Notice the vertical lever where normally one would see a bolt.  By pulling this lever out and down 90 degrees the end user can easily remove the handguard by pulling it straight out and off, no tools required.

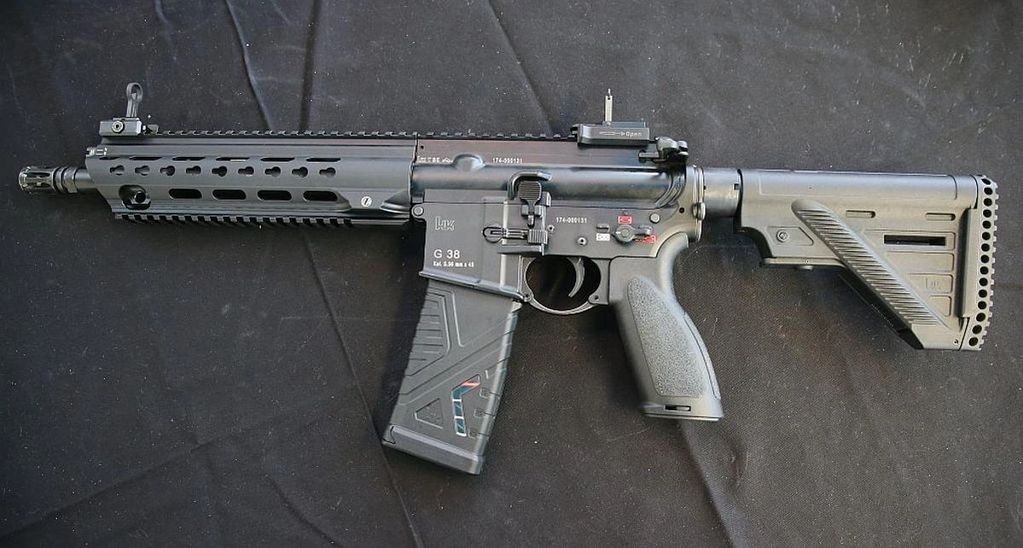

    HK G38

    This 11" select fire G38 has been configured with low profile folding sights and the standard HK Hkey handguard.

    H&K 416 Française

    For a period of over 10 years France will phase in the Heckler & Koch HK416F, in two different versions, to soldiers in the Army, Air Force and Navy.

    The HK is referred to as the “Arme Individuelle Future (AIF)”, which roughly translates to Individual Firearm for the Future.

    According to the French Ministry of Defense 93 080 pieces of Heckler & Koch 416F will be delivered between 2017 and 2028.

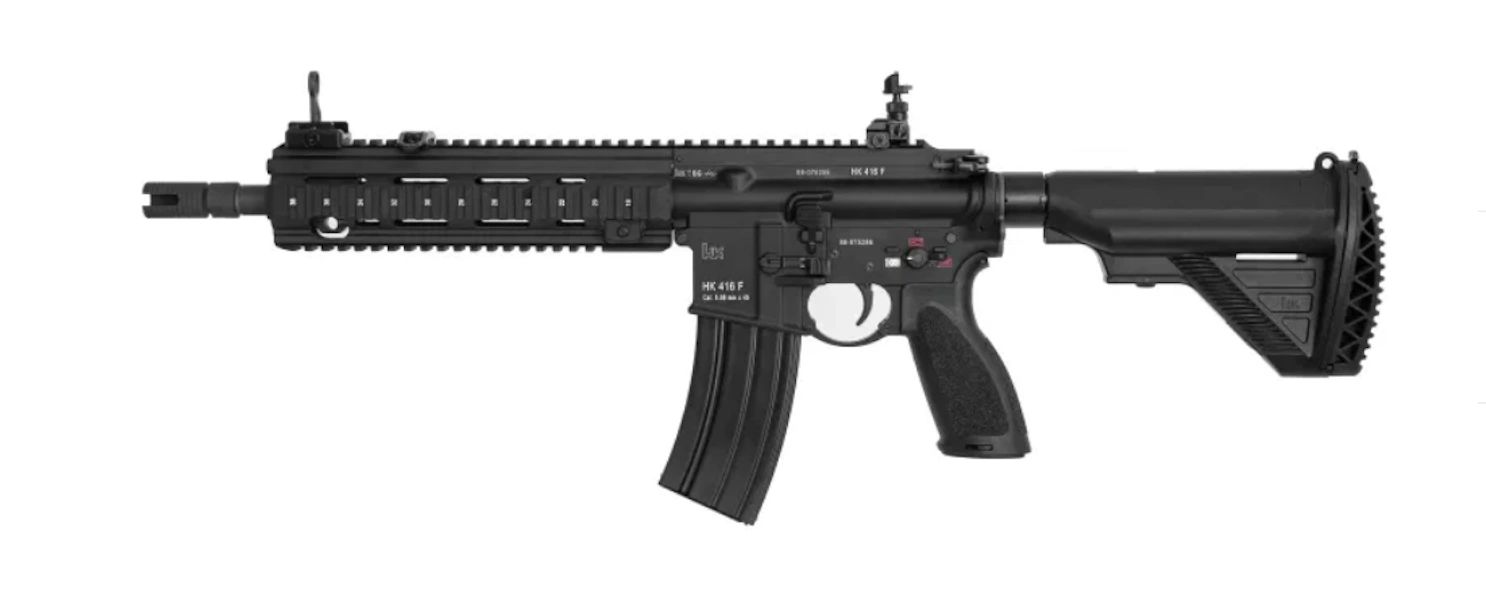

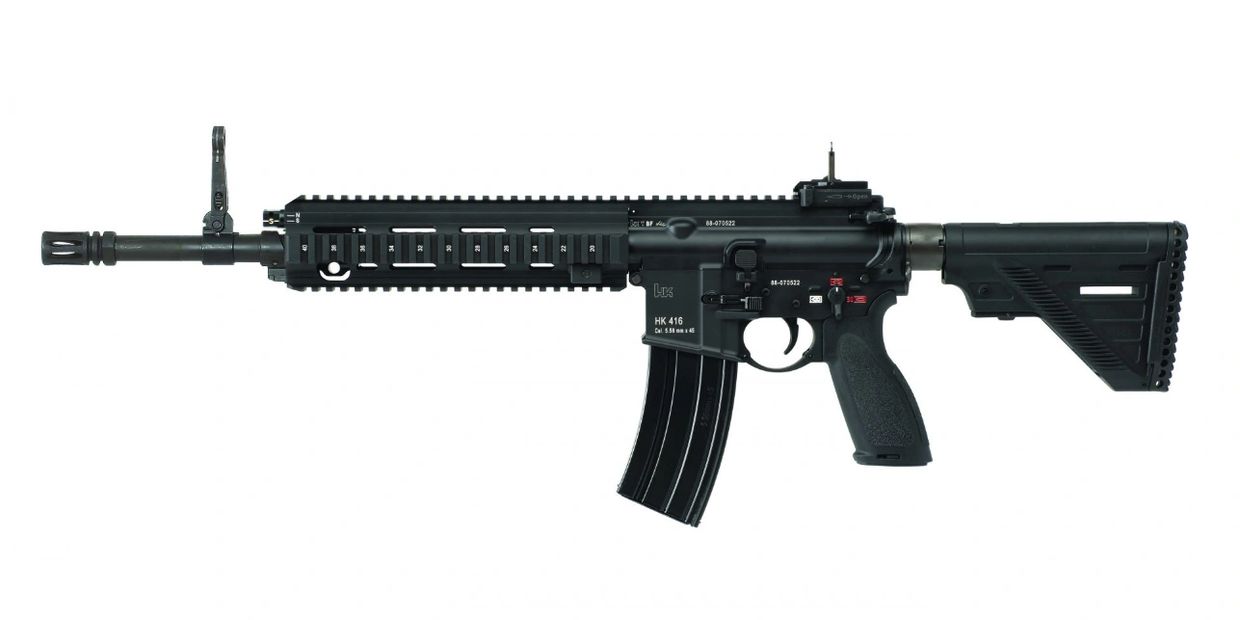

    HK416F Standard


    The HK MR223 F-C

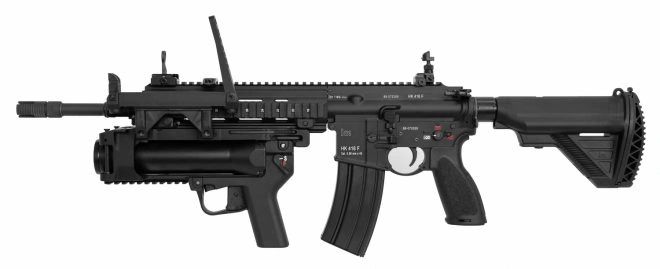

    The HK416F Standard fitted with an HK269F (40 x 46 mm) grenade launcher.


    Barrel Length: 36.5 cm or 14.5″

    Weight: 4 kg or 8.8 lbs.

    HK416F (Court) Short or HK416 F-C


    Barrel Length: 27.94 cm or 11"

    Weight: 3.7 kg or 8.1 llbs








    HK416 A5 IN THE FIELD

      French CPA 10 (Commando parachutiste de l'air n° 10) with HK416 A5's equipted with Rotex suppressors

      01/12

      HK416 A5 VIDEOS

      FRENCH ARMY HK416 F DEMONSTRATION

      GARAND THUMB HK416 A5 DEMONSTRATION

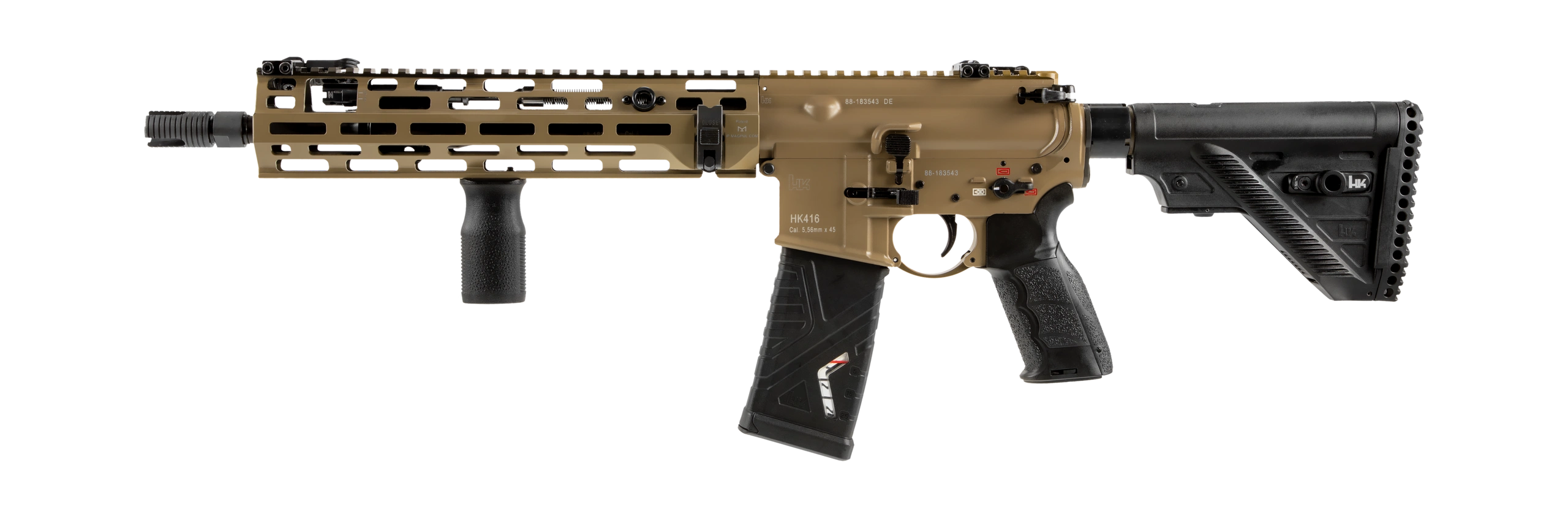

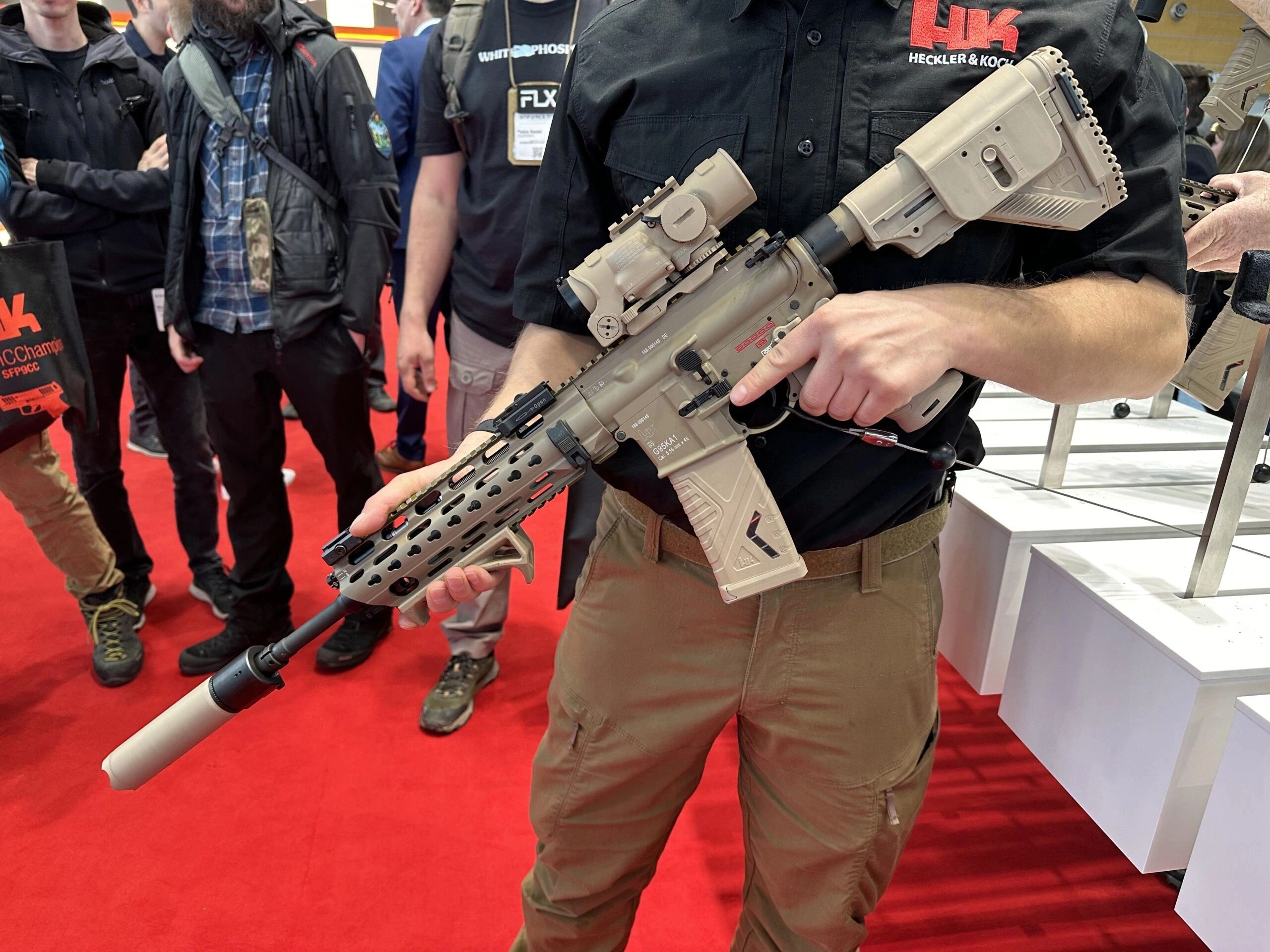

      HK416 A7

      One noticeable feature of the HK G95K is an upgrade to the lower receiver that incorporates short throw, "dog leg" style fire control levers.

      Another extremely useful feature added to the G95 is an upgraded, toolless handguard. This is made possible by replacing the crossbolt with a lever and cam system allowing quick access to the gas block, piston, and piston rod assembly.

        KSK DEMONSTRATING THE HK G95K

        END USERS

        🇦🇺 Australia

        Special Operations Command of the Australian Defence Force

        D10RS

         2013


        🇧🇷 Brazil

        Command of Tactical Operations (Comando de Operações Táticas, COT) of the Brazilian Federal Police

        HK416 A3

        2012


        Tactical Intervention Groups (Grupos de Intervenção Tática, GPI) of the Brazilian Federal Police

        HK416 A5, HK417

        2014


        Naval Special Operations Command (Comando Naval de Operações Especiais) of the Brazilian Navy

        HK416 A3


        Special Operations Command (Comando de Operações Especiais, C Op Esp) of the Brazilian Army

        HK416 A3



        🇭🇷 Croatia

        Special Operations Command of the Croatian Armed Forces

        HK416 & HK417

        2012 & 2015


        🇨🇿 Czech Republic

        Police of the Czech Republic

        HK417

        2017



        🇫🇷 France

        Commandement des Opérations Spéciales - intervention purchase for Afghanistan mission

        HK416D

        2007


        French Armed Forces - selected the HK416F as their new standard assault rifle to replace the FAMAS.

        HK416F

        102,000 to 117,000

        2017


        French Armed Forces

        HK417


        Commando Parachutiste de l'Air of the French Air Force


        13ème RDP of the French Army

        D14.5RS and HK416 A5 – 14.5"


        🇩🇪  Germany

        German Special Forces Command (Kommando Spezialkräfte, KSK) of the German Army

        HK416 A7, HK417 A2


        Kommando Spezialkräfte Marine of the German Navy


        GSG 9 (formerly Grenzschutzgruppe 9 der Bundespolizei) of the German Federal Police

        HK416 A5, HK417 A2


        Hesse State Police

        G38 semi-automatic 14.5"

        2,005 rifles ordered


        ZuZ Special forces of the German Customs Service

        HK416 A5


        🇬🇪 Georgia

        Georgian Special Forces


        🇭🇺 Hungary

        Counter Terrorism Center

        HK416 A5


        🇮🇩 Indonesia

        Detasemen Jala Mangkara (Denjaka) naval anti-terrorism unit of the Indonesian Navy

        HK416


        Kopaska (Komando Pasukan Katak) Frogman of the Indonesian Navy

        HK416


        Detachment 88 of the Indonesian National Police

        HK416


        🇮🇪 Ireland

        Army Ranger Wing (ARW) of the Defence Forces

        HK416 A5, HK417 A2

        2010


        Emergency Response Unit (ERU) of the Garda Síochána

        HK416 A5

        🇮🇹 Italy

        COMSUBIN (Comando Raggruppamento Subacquei e Incursori Teseo Tesei, COMSUBIN) of the Italian Navy


        9th Parachute Assault Regiment


        GIS (Gruppo di Intervento Speciale, GIS) of the Carabinieri


        🇯🇵 Japan

        Special Forces Group (Tokushusakusengun, SFG), of the Japan Ground Self-Defense Force

        HK416, HK417


        Special Boarding Unit (Tokubetsukeibitai, SBU) of the Japan Maritime Self-Defense Force

        HK416


        🇯🇴 Jordan

        Joint Special Operations Command (Jordan)

        HK416



        🇱🇹 Lithuania

        Special Operations Force

        HK416 A5


        🇲🇾 Malaysia

        Pasukan Khas Laut (PASKAL) special operations warfare unit of the Royal Malaysian Navy

        D16.5RS

        2010


        Pasukan Gerakan Khas counter-terrorism divisions of the Royal Malaysia Police

        D10RS, D14.5RS

        2006


        Malaysian Maritime Enforcement Agency

        HK416 A5


        🇳🇱 Netherlands

        Korps Commandotroepen of the Royal Netherlands Army

        D10RS, D14.5RS, HK416 A5

        2010




        M-Squadron of the Netherlands Marine Corps (Maritime Special Operations Forces)


        Brigade Speciale Beveiligingsopdrachten of the Royal Marechaussee


        Dienst Speciale Interventies of the Dutch National Police


        🇳🇴 Norway

        Norwegian Armed Forces

        Norwegian Home Guard

        HK416N, HK416K, HK416S (specialized DMR version of HK416N, modified in Norway)

        40,000 + 11,000

        2008


        🇵🇭 Philippines

        Philippine Marine Corps Marine Special Operations Group (MARSOG)

        HK416D

        HK416 D10RS


        🇵🇱 Poland

        Wojska Specjalne

        2008


        Policja

        D10RS, HK416C

        2006, 2011


        🇵🇹 Portugal

        Special Operations Troops, Portuguese Army

        HK416 A5


        Tactical Actions Group (GAT), Maritime Police


        🇷🇸 Serbia

        Special Brigade

        HK416

        2010


        🇸🇬 Singapore

        Republic of Singapore Navy

        Special Operations Force (Singapore)

        HK416


        🇸🇰 Slovakia

        5th Special forces regiment

        HK416, HK417

        2010


        🇰🇷 South Korea

        Korea National Police SWAT

        HK416

        364

        2017


        Republic of Korea Navy Special Warfare Flotilla

        HK416, D10RS

        2010


        🇪🇸 Spain

        Special Naval Warfare Force

        HK416 A5, HK417

        2018


        🇹🇷 Turkey

        Special Forces

        HK416 A5



        🇺🇸 United States

        Joint Special Operations Command

        (units include Delta Force, DEVGRU, 24th STS)

        HK416

        2004



        CIA Special Activities Center


        United States Army Asymmetric Warfare Group


        NASA Emergency Response Teams


        FBI Hostage Rescue Teams


        Los Angeles Police Department Metropolitan Division

        All members (A, B, C, E, H, G and K-9 Platoons) use 416 modified to semi-auto, but only SWAT (D Platoon) uses select fire version


        United States Marine Corps

        M27 IAR

        14,100

        2011-2012


        Kentucky State Police Special Response Team

        HK416

        2008
